Lake Mendota Hydrologic Nowcast Modeling

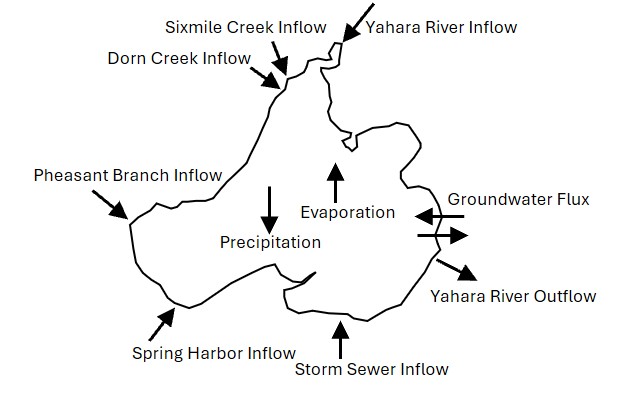

Lake Mendota Water Budget Schematic and Equation
Lake Mendota Schematic

ΔS = VInflow + VStorm + VSixmile + VDorn + Vpb + Vsh + VP
± VGround − VOut − VEv

Variables and definitions (units in model are acre-feet):

  • ΔS = Change in Lake Storage Volume
  • VInflow = Yahara River Inflow Volume (at Highway 113)
  • VStorm = Urban Storm Sewer Inflow Volume
  • VSixmile = Sixmile Creek Inflow Volume
  • VDorn = Dorn Creek Inflow Volume
  • Vpb = Pheasant Branch Creek Inflow Volume
  • Vsh = Spring Harbor Inflow Volume
  • VP = Direct Atmospheric Precipitation Volume on Lake Surface
  • VGround = Net Groundwater and Unmeasured Lateral Flux Volume
  • VOut = Yahara River Outflow Volume (at the main outlet weir to Lake Monona)
  • VEv = Aerodynamic Mass-Transfer Evaporative Loss Volume

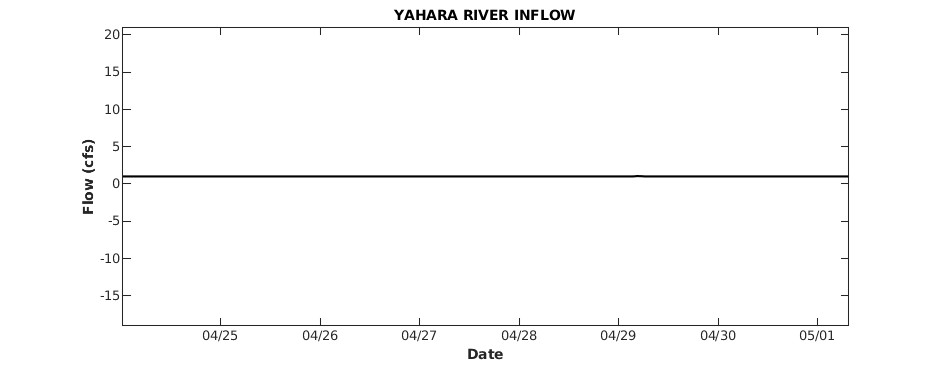

Inflow - Yahara River from Cherokee Marsh

Yahara River Inflow

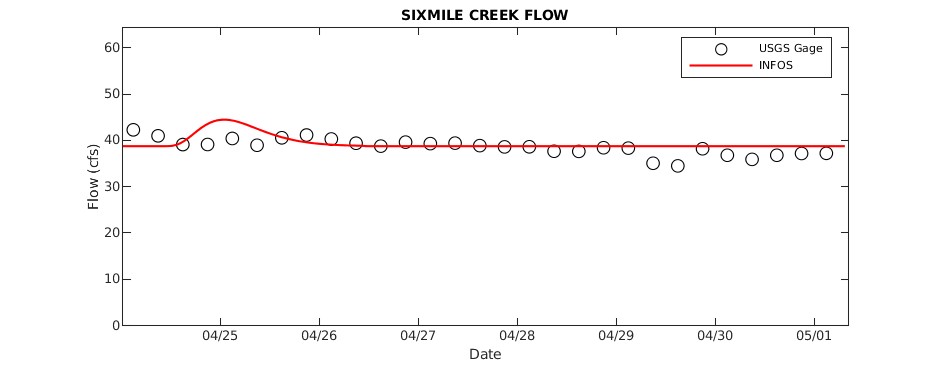

Inflow - Six Mile Creek

Six Mile Creek Flow

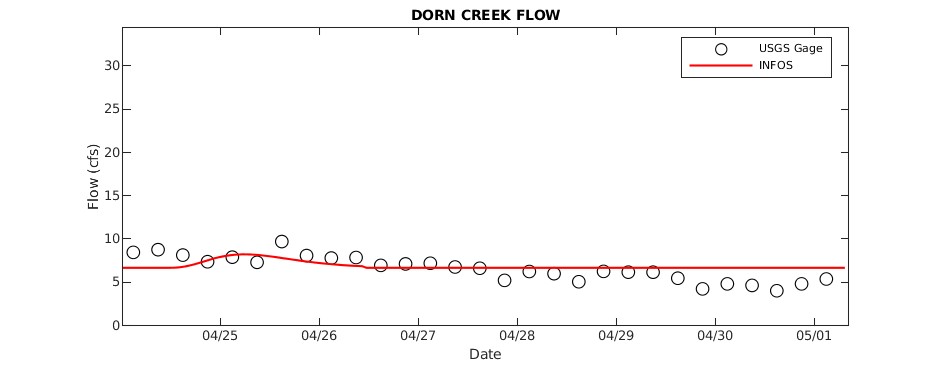

Inflow - Dorn Creek

Dorn Creek Flow

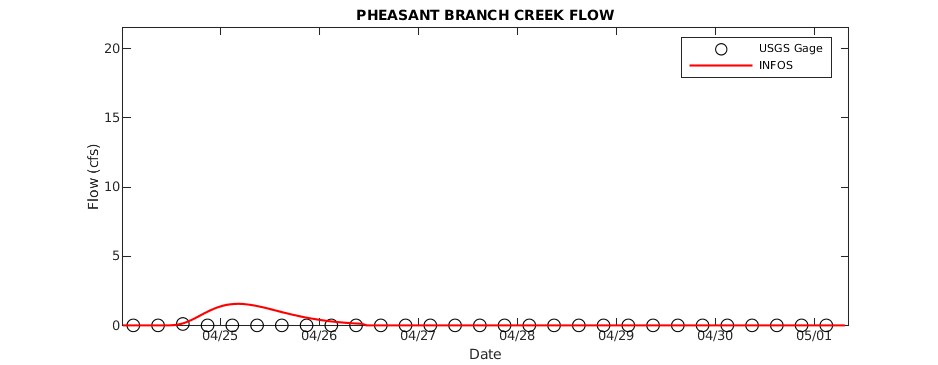

Inflow - Pheasant Branch Creek

Pheasant Branch Creek Flow

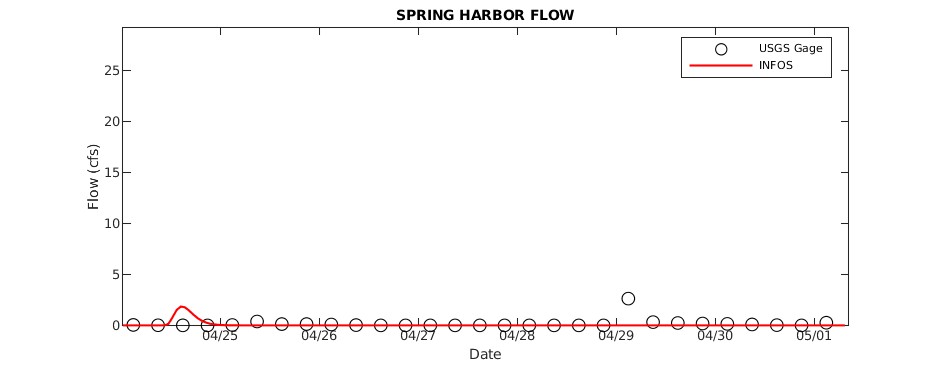

Inflow - Spring Harbor

Spring Harbor Flow

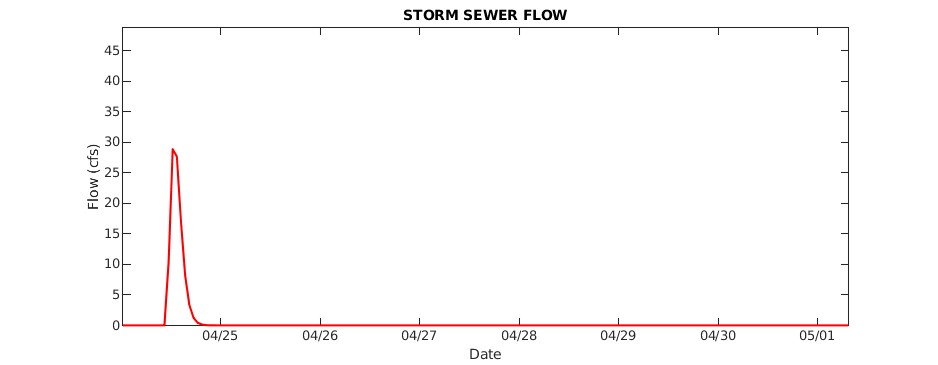

Inflow - Storm Sewer Inflow

Storm Sewer Flow

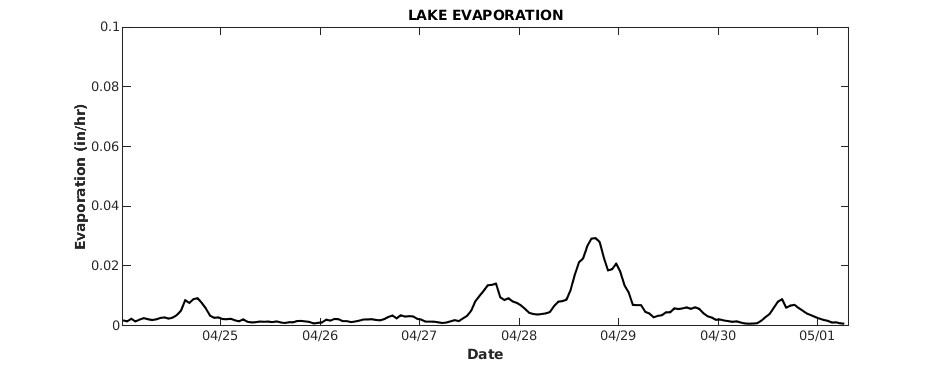

Outflow - Lake Evaporation

Lake Evaporation

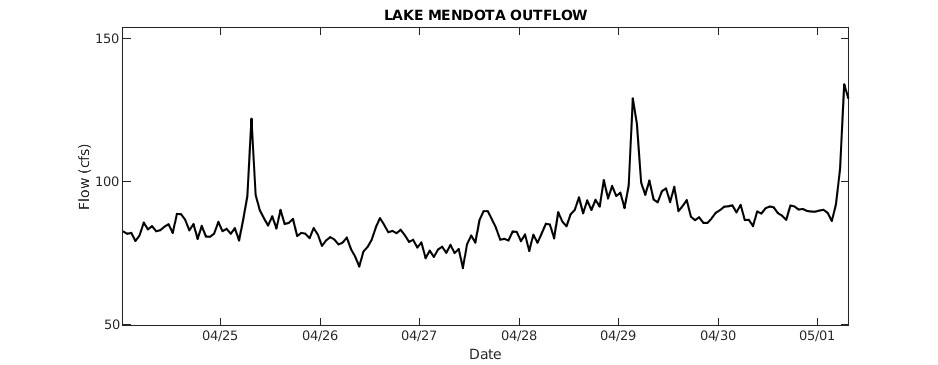

Outflow - Yahara River to Lake Monona

Lake Mendota Outflow

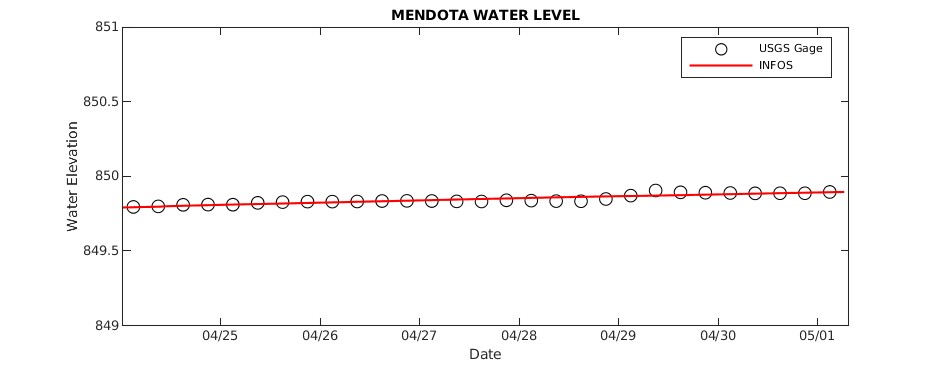

Lake Mendota Water Level

Lake Mendota Water Level

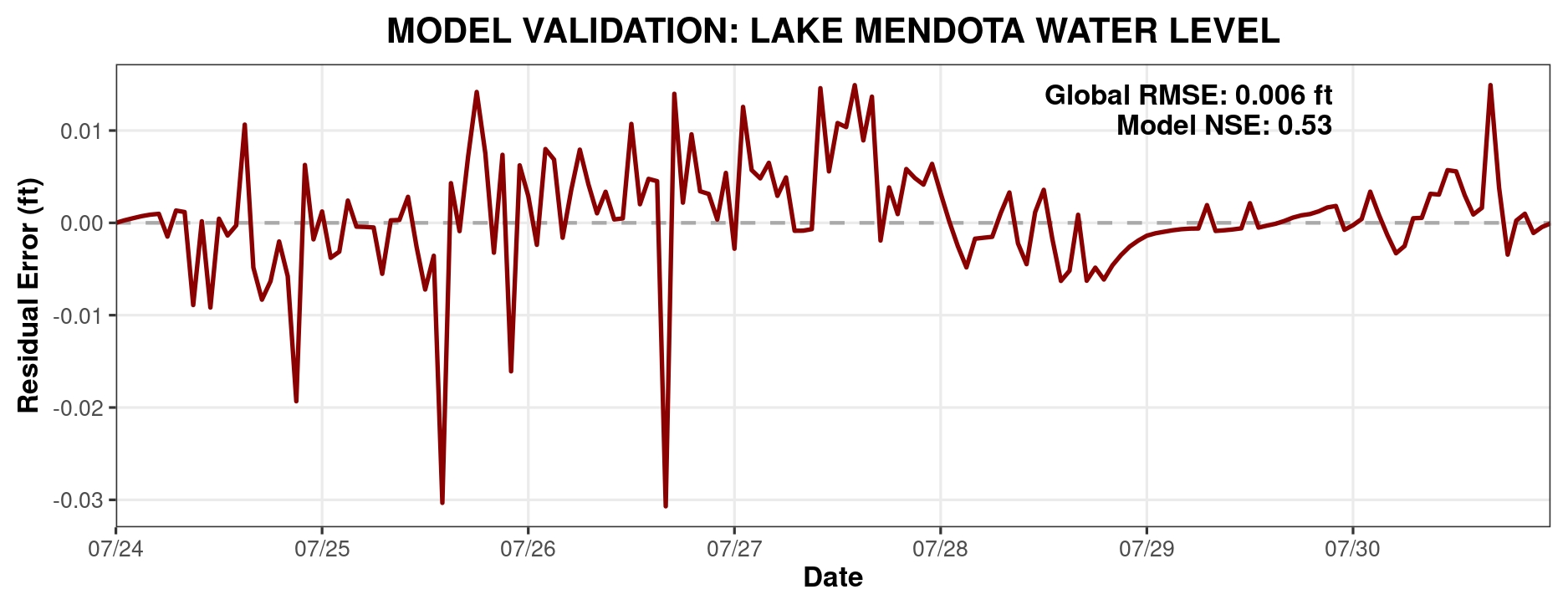

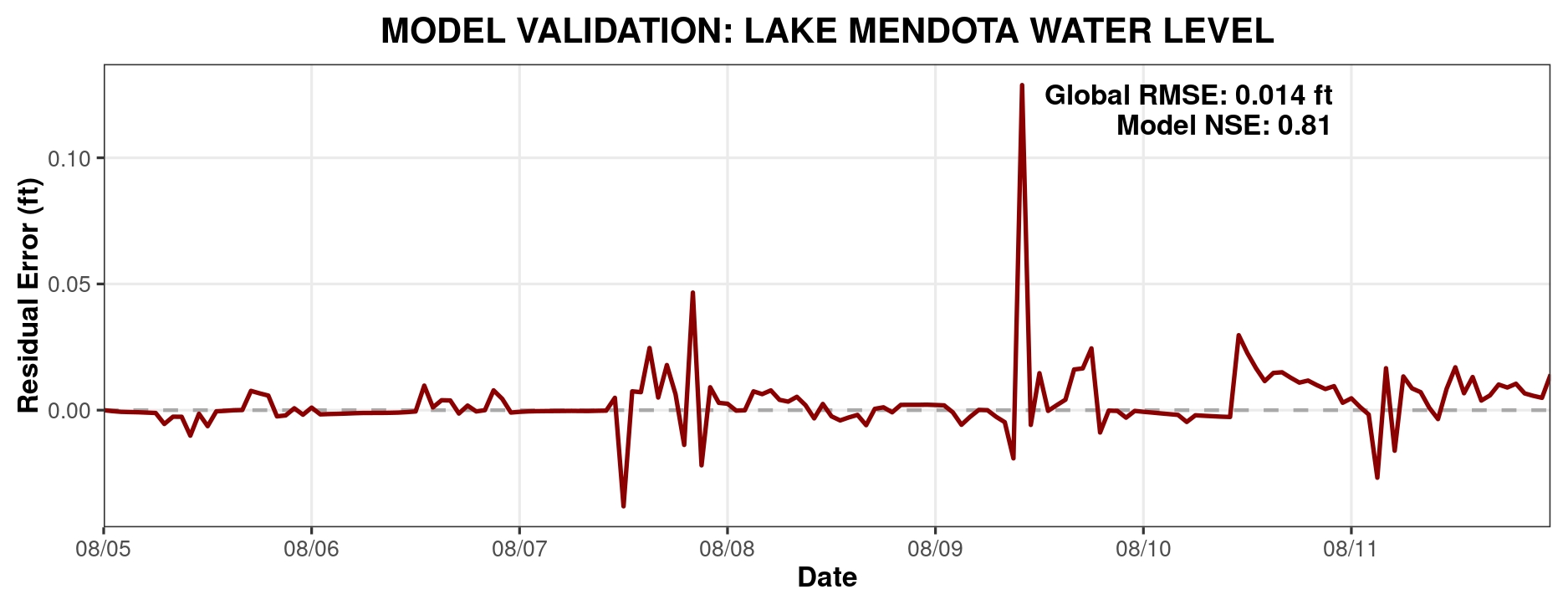

Hydrologic Model Validation

Lake Mendota Hydrologic Model Validation
