Lake Monona Hydrologic Nowcast Modeling

Lake Monona Water Budget Schematic and Equation

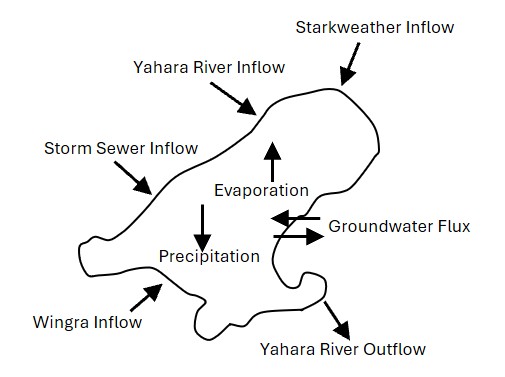

Lake Monona Schematic

ΔS = VIn + VStark + VWingra + VP ± VGround − VOut − VEv

Variables and definitions (units in model are acre-feet):

  • ΔS = Change in Lake Storage Volume
  • VIn = Yahara River Inflow Volume (from Lake Mendota)
  • VStark = Starkweather Creek Inflow Volume
  • VWingra = Lake Wingra Inflow Volume
  • VP = Direct Atmospheric Precipitation Volume on Lake Surface
  • VGround = Net Groundwater and Unmeasured Lateral Flux Volume
  • VOut = Yahara River Outflow Volume (to Lake Waubesa)
  • VEv = Aerodynamic Mass-Transfer Evaporative Loss Volume

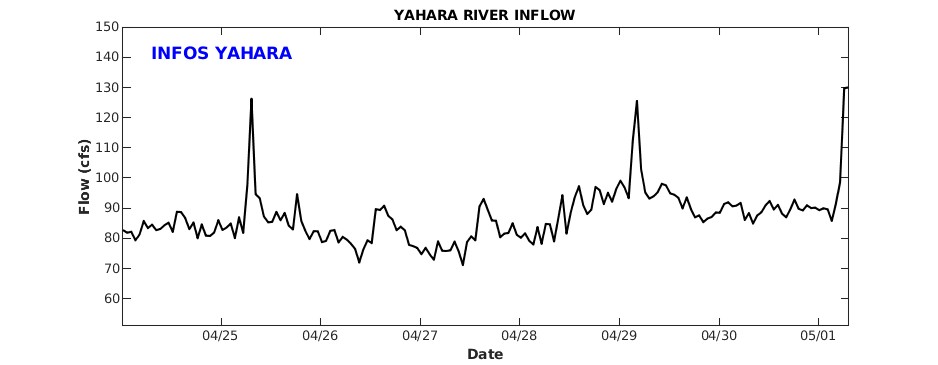

Inflow - Yahara River from Lake Mendota

Yahara River Inflow

Inflow - Starkweather Creek

Starkweather Creek Inflow

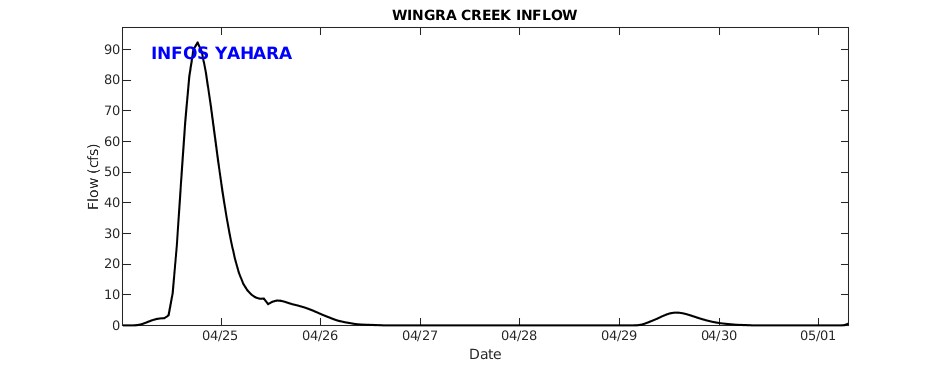

Inflow - Wingra Creek

Wingra Creek Inflow

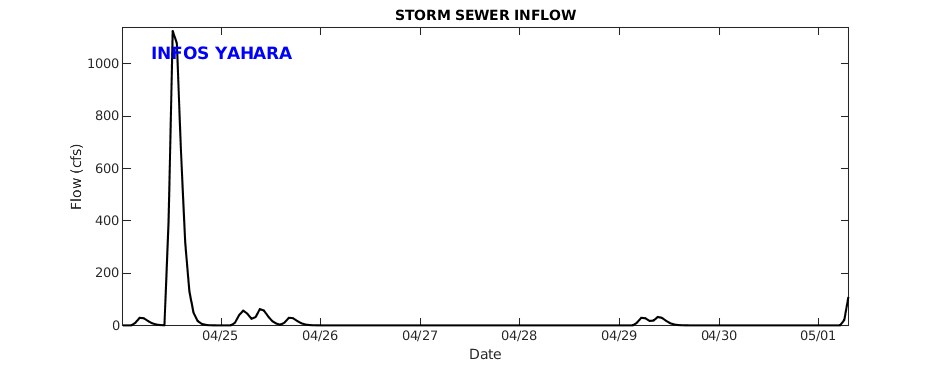

Inflow - Storm Sewer Inflow

Storm Sewer Inflow

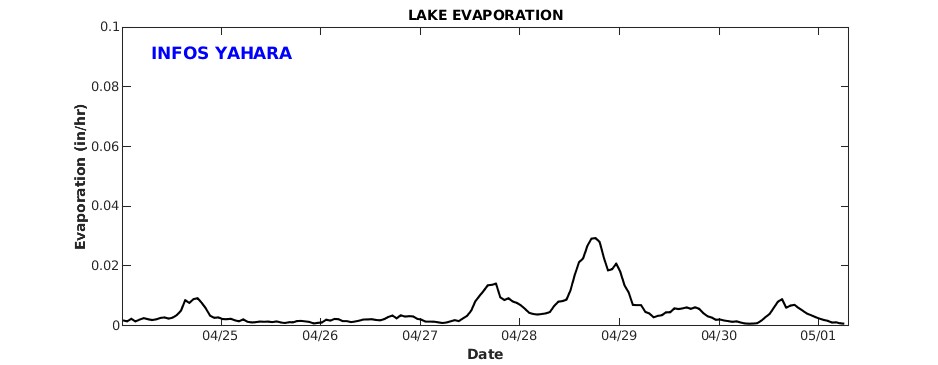

Outflow - Lake Evaporation

Lake Evaporation

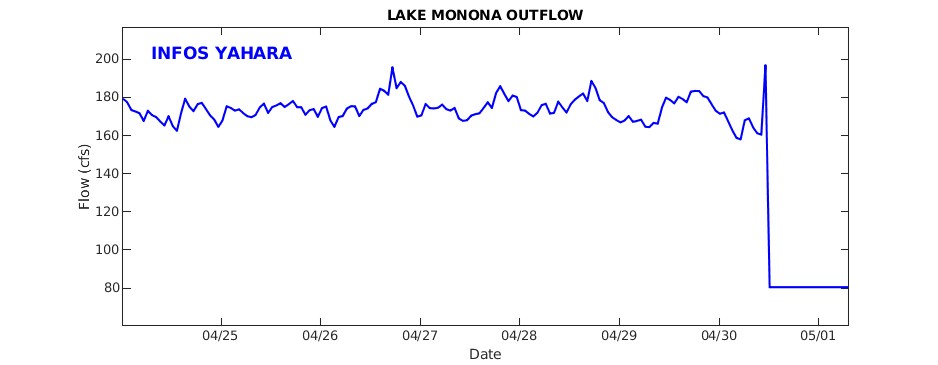

Outflow - Yahara River to Lake Waubesa

Lake Monona Outflow

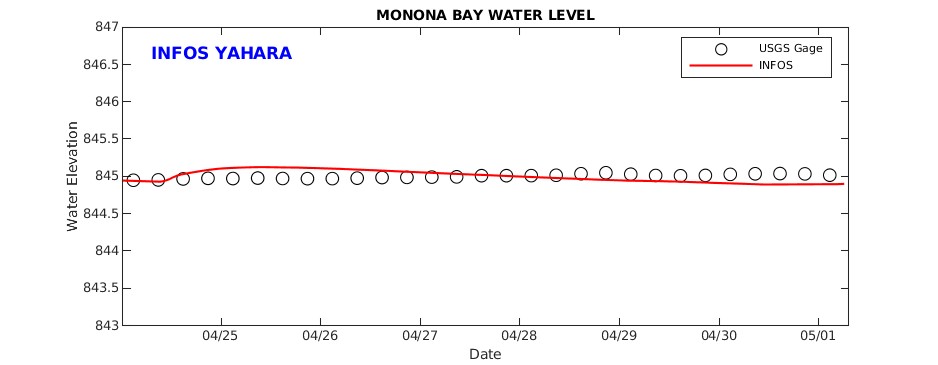

Lake Monona Water Level

Lake Monona Water Level

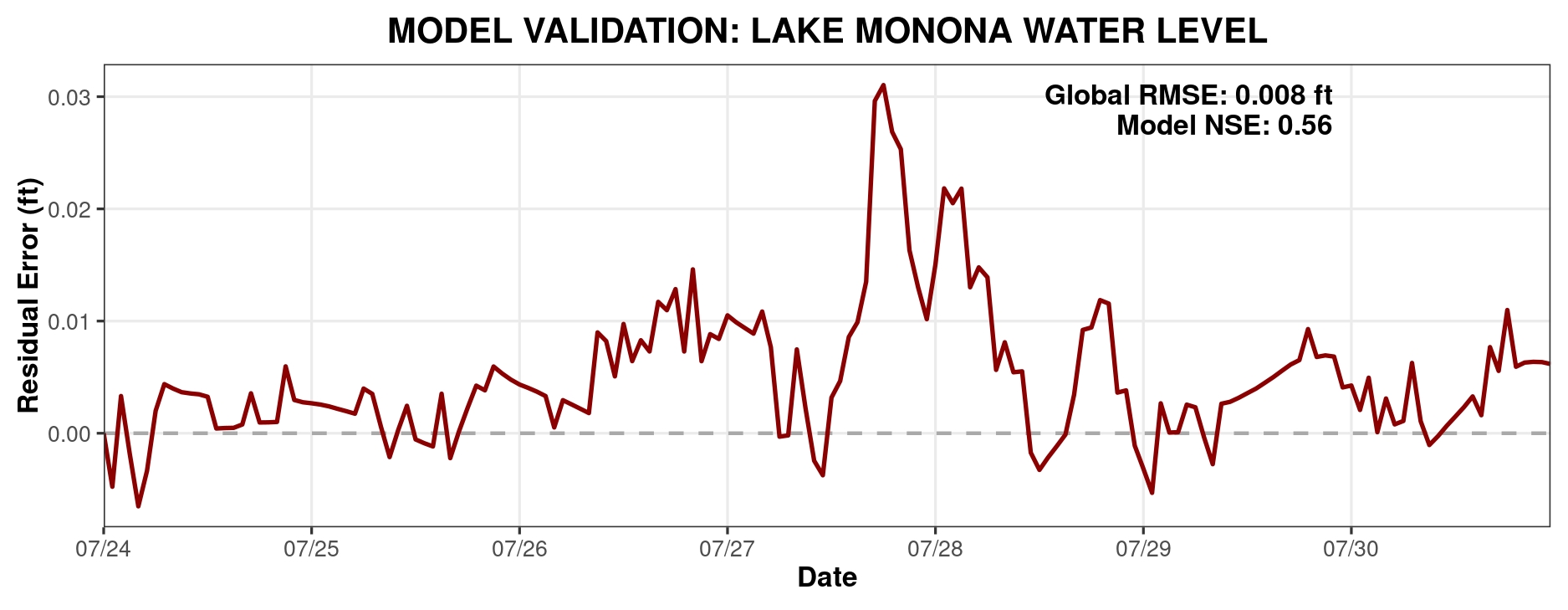

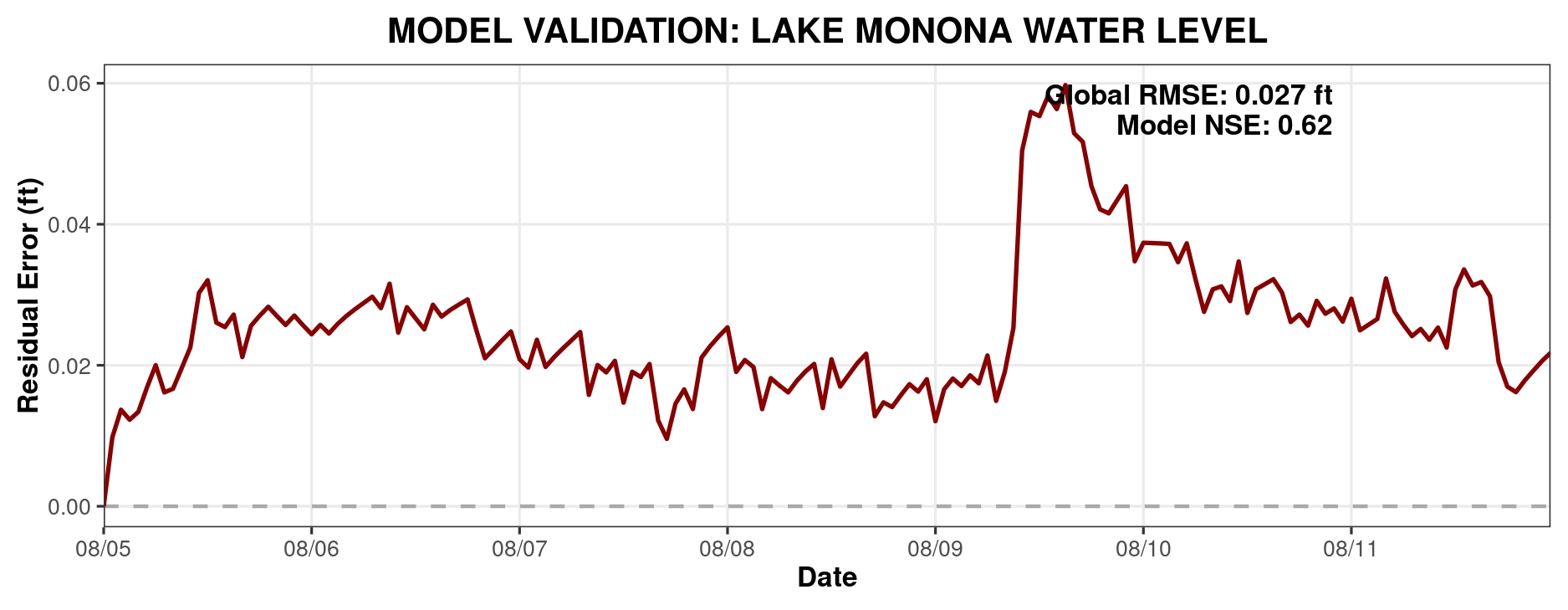

Hydrologic Model Validation

Model Validation
