Lake Waubesa Hydrologic Nowcast Modeling

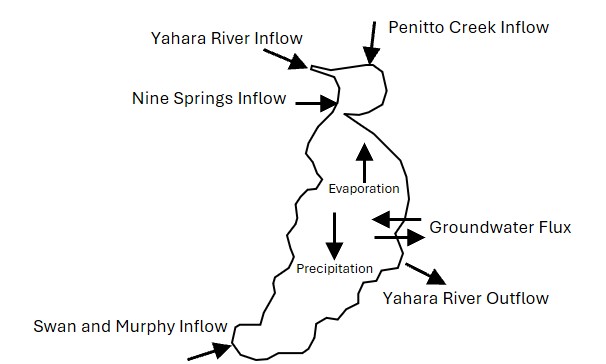

Lake Waubesa Water Budget Schematic and Equation
Lake Monona Schematic

ΔS = VInflow + VPenitto + VNine + VSwan + VP ± VGround − VOut − VEv

Variables and definitions (units in model are acre-feet):

  • ΔS = Change in Lake Storage Volume
  • VInflow = Yahara River Inflow Volume (from Lake Monona outflow)
  • VPenitto = Penitto Creek Inflow Volume
  • VNine = Nine Springs Creek Inflow Volume
  • VSwan = Swan and Murphys Creek Inflow Volume
  • VP = Direct Atmospheric Precipitation Volume on Lake Surface
  • VGround = Net Groundwater and Unmeasured Lateral Flux Volume
  • VOut = Yahara River Outflow Volume (to Lake Kegonsa)
  • VEv = Aerodynamic Mass-Transfer Evaporative Loss Volume

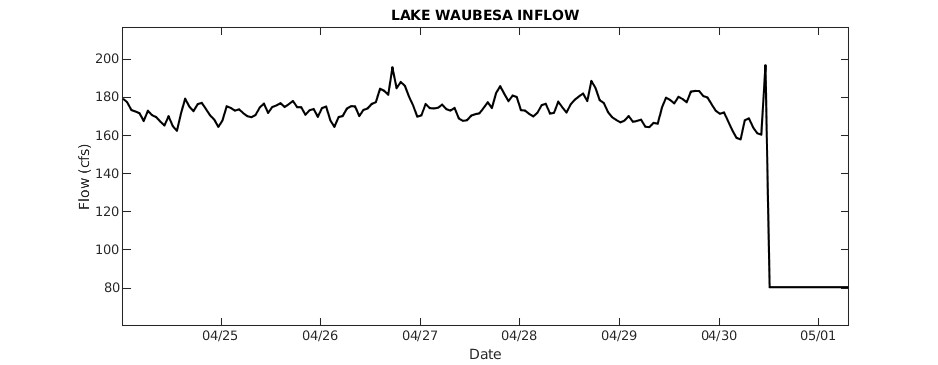

Inflow - Yahara River from Lake Monona

Lake Waubesa Inflow

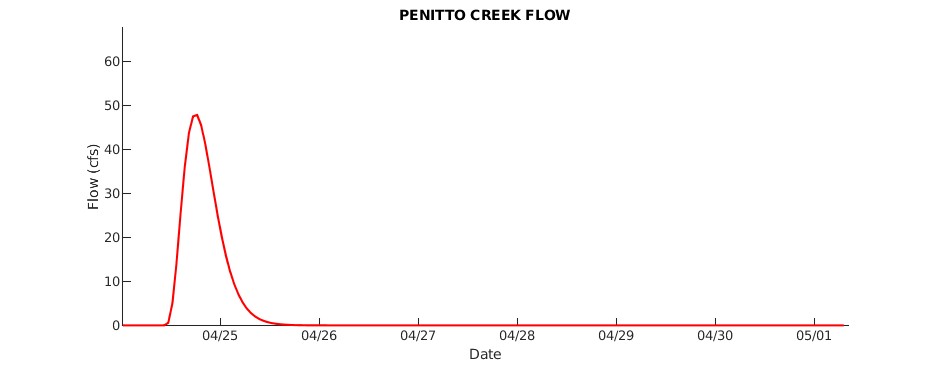

Inflow - Penitto Creek

Penitto Creek Flow

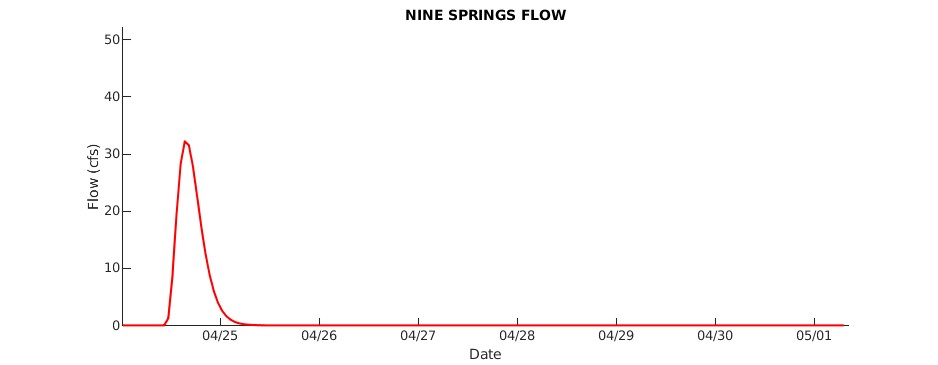

Infow - Nine Springs Creek

Nine Springs Creek Flow

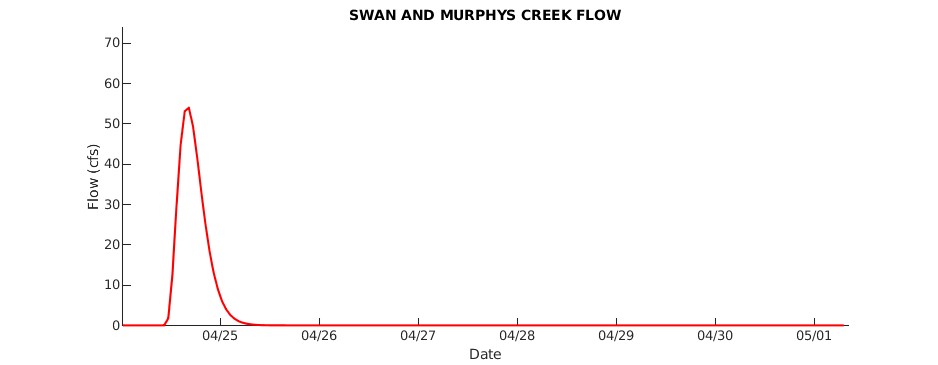

Inflow - Swan and Murphy Creek

Pheasant Branch Creek Flow

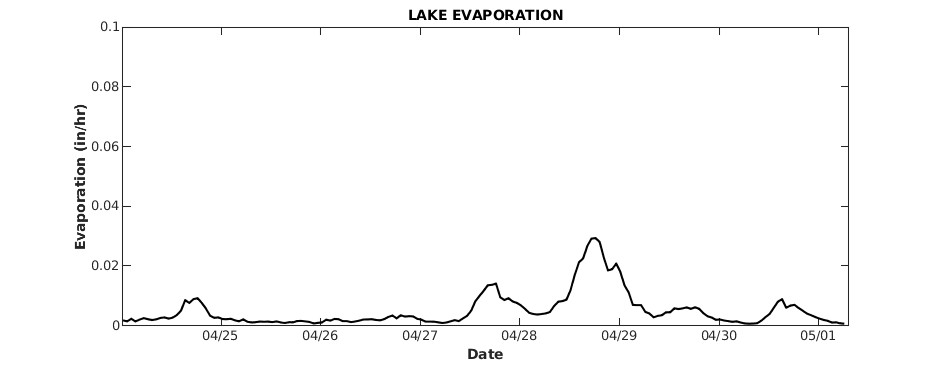

Outflow - Lake Evaporation

Lake Evaporation

Outflow - Yahara River to Lake Kegonsa

Lake Waubesa Outflow

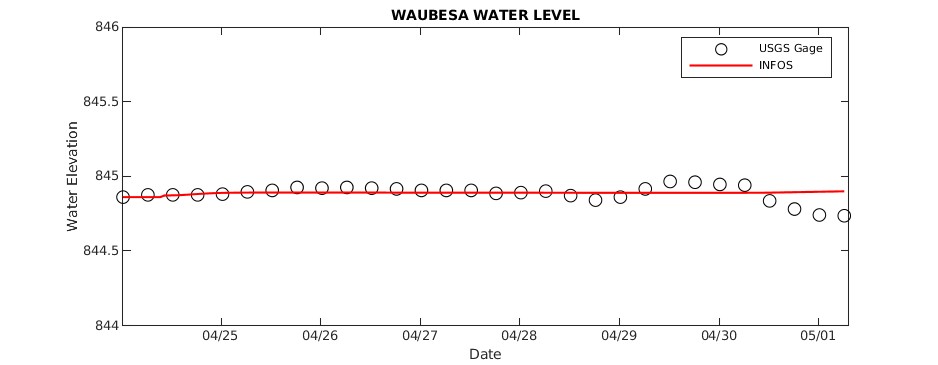

Lake Waubesa Water Level

Lake Waubesa Water Level

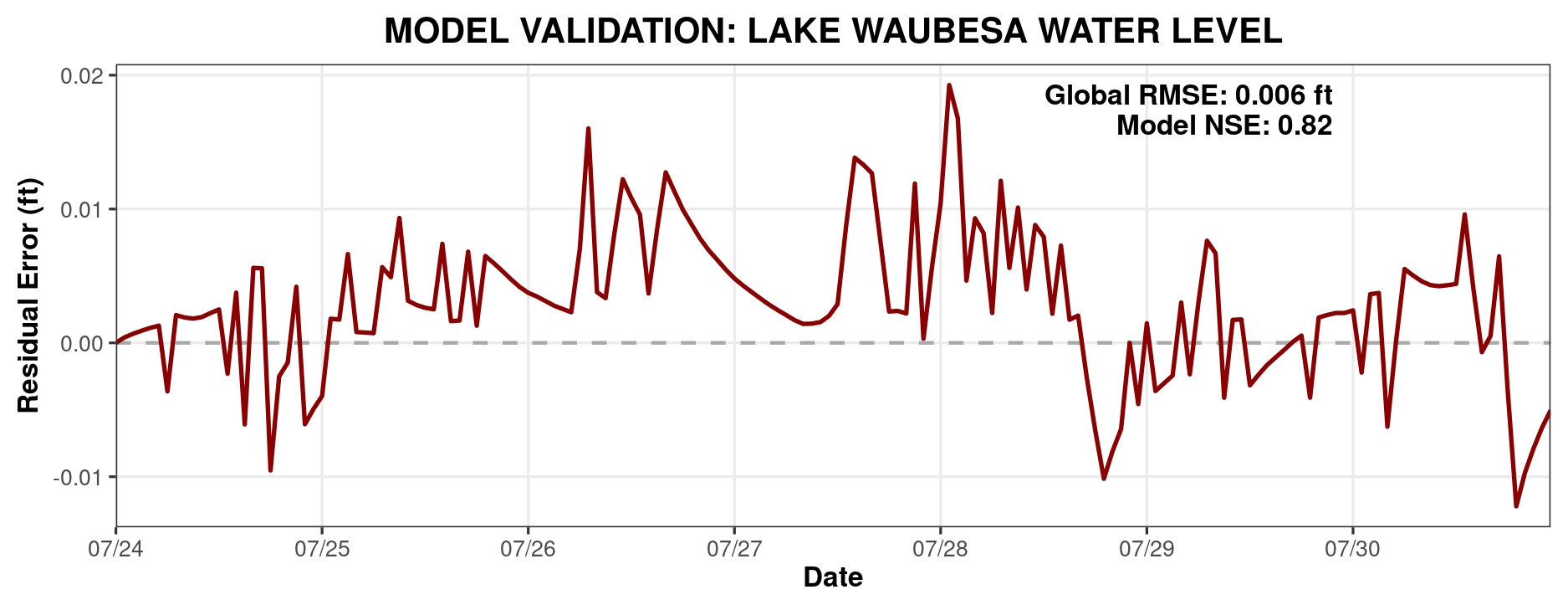

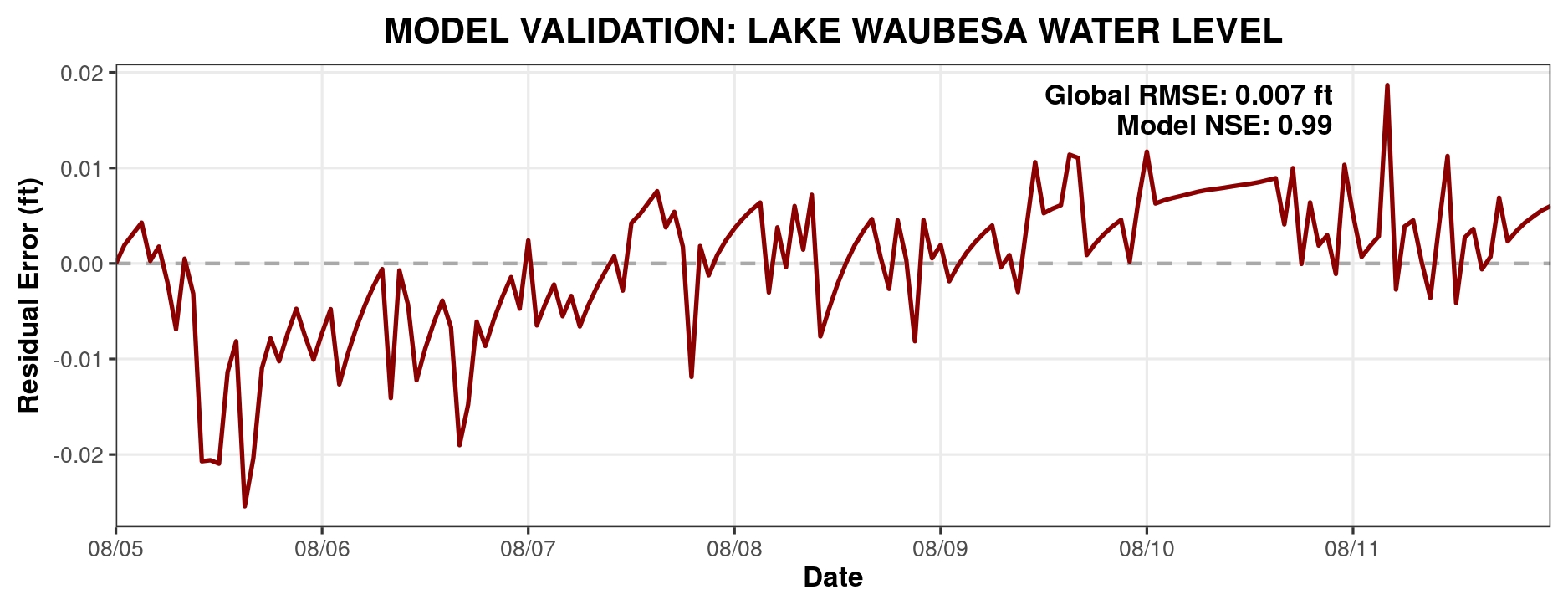

Hydrologic Model Validation

Lake Waubesa Validation
